Modular front-aperture accessory holder for the Celestron C8 EdgeHD — a common mechanical interface for solar-filter inserts, focusing masks and aperture stops.
TRL means Technology Readiness Level, a nine-stage scale describing technological maturity. TRL 8 denotes a completed and qualified system; TRL 9 denotes a system proven in its intended operational environment. Final operational validation and commercial release remain pending.
Commercial target: availability for sale in Europe through the Astrotechnica e-store ↗ before the end of 2026, subject to final testing, safety verification and release.

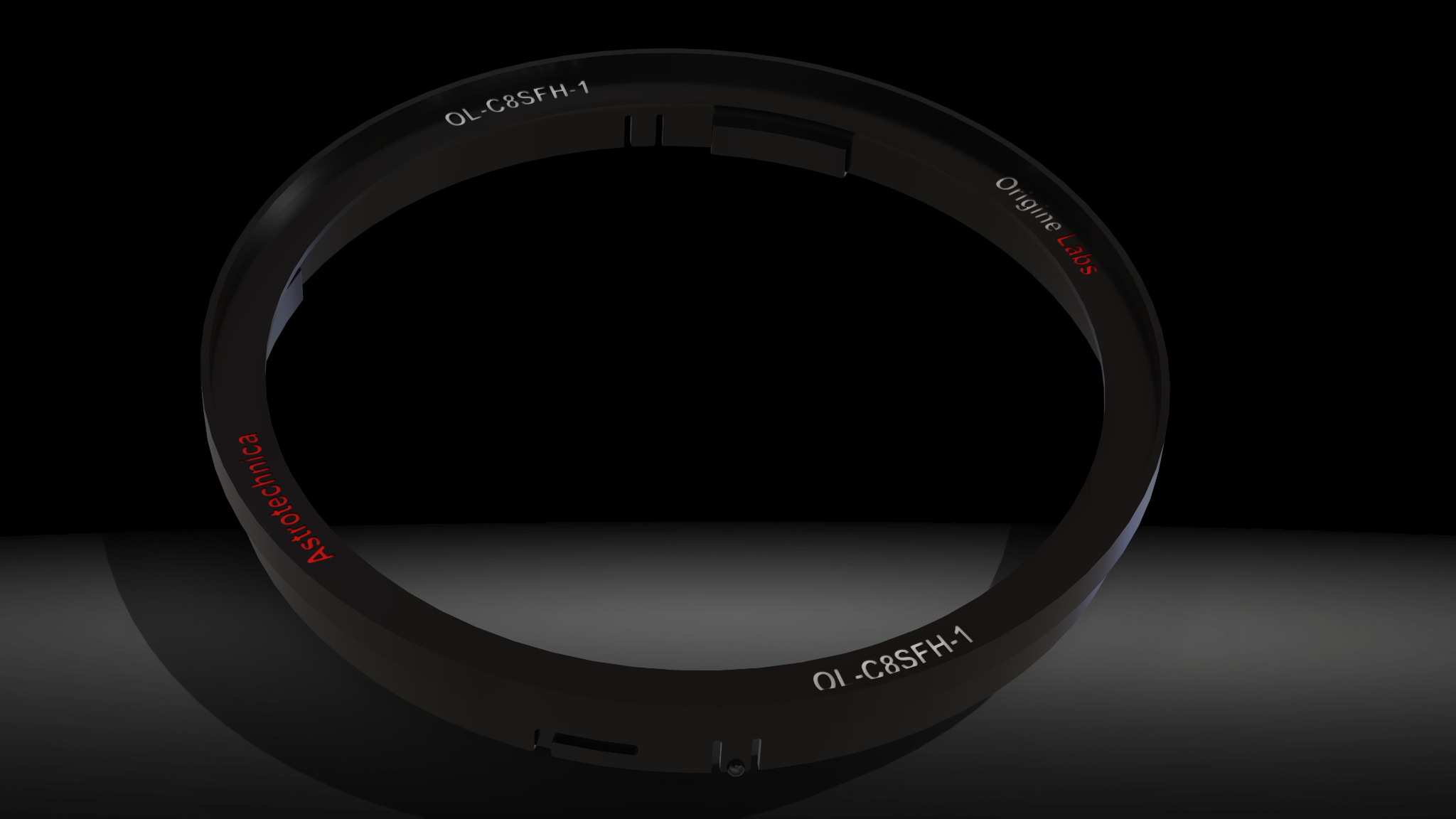

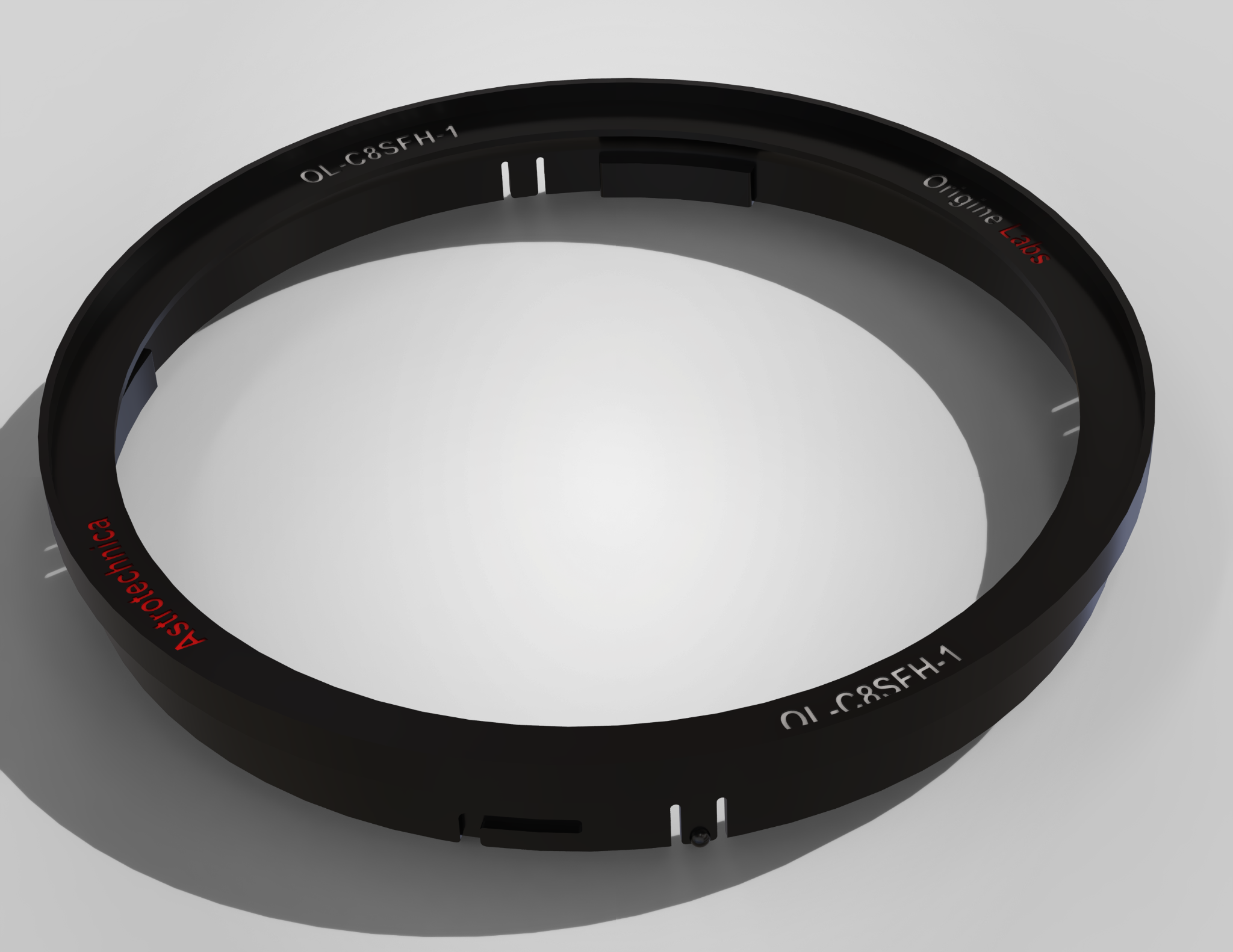

The OL-C8SFH-1 is designed as a reusable front-mounted holder, with a replaceable insert for each optical function. Separating the holder from the accessory allows different masks or filter assemblies to share the same mechanical attachment concept. The holder and insert retention mechanisms must both be validated, including repeated changes, vibration or handling loads, clearance and correct orientation.

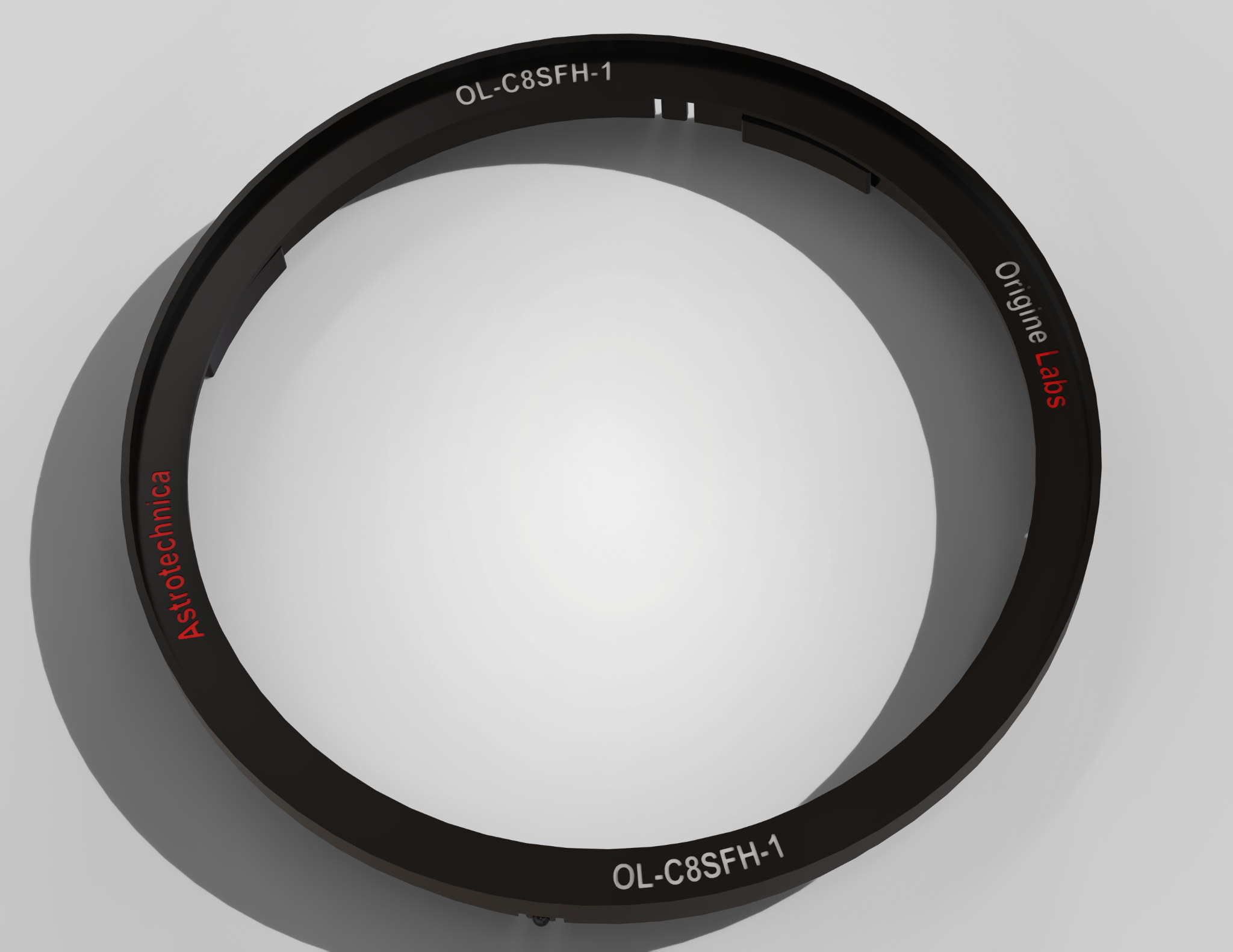

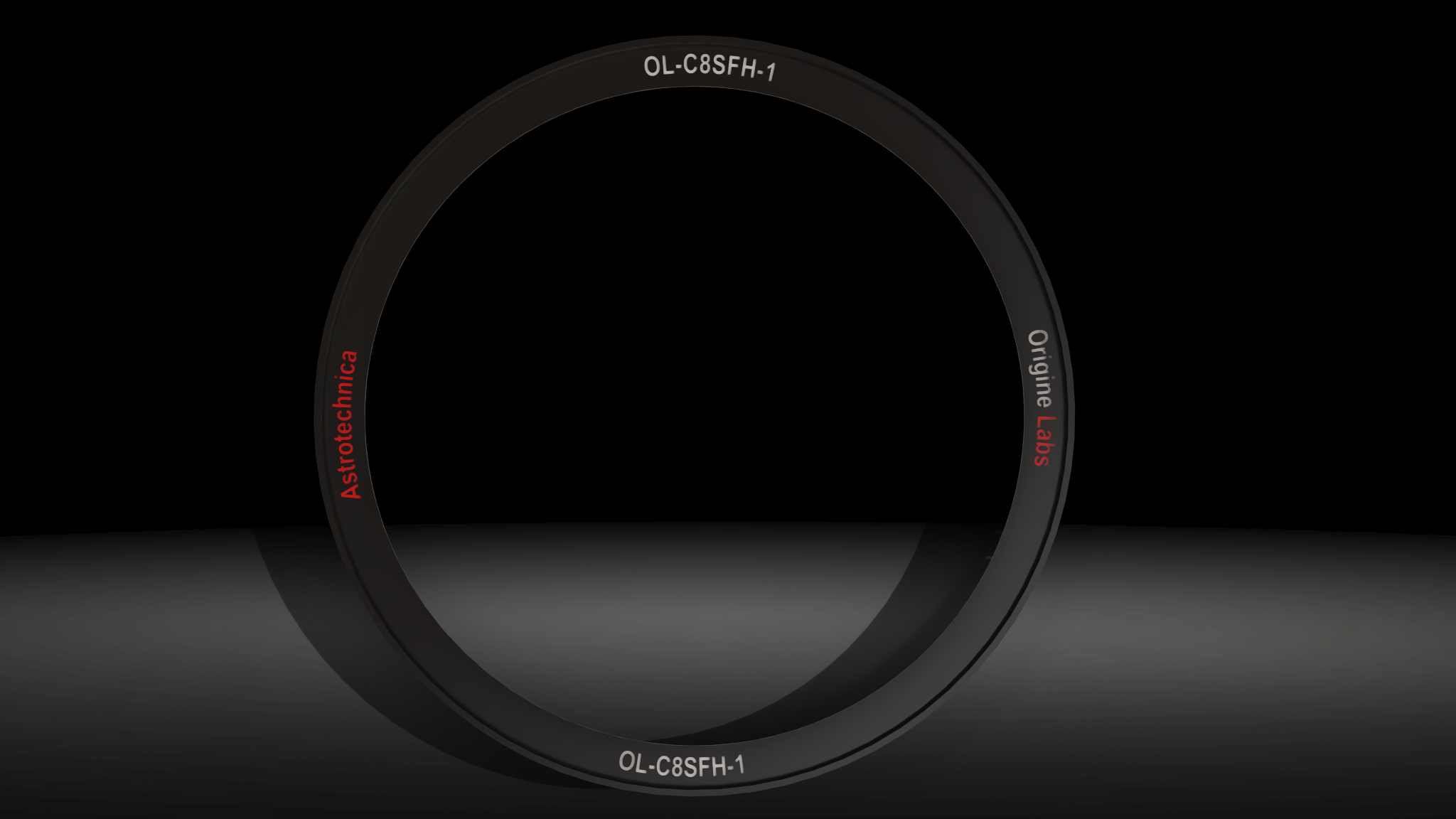

The current revision-B drawing specifies a nominal outside diameter of 234 mm, an opening of 204 mm and a 28 mm overall height. It lists black-dyed PA11-HP and an approximate mass of 106 g. Dimensions and interface tolerances remain subject to design release.
The six inserts below form the current development exploration scope, not six production-ready products. The common holder and M1/M2 are the first investment priorities; the other inserts require further feasibility and performance evidence.

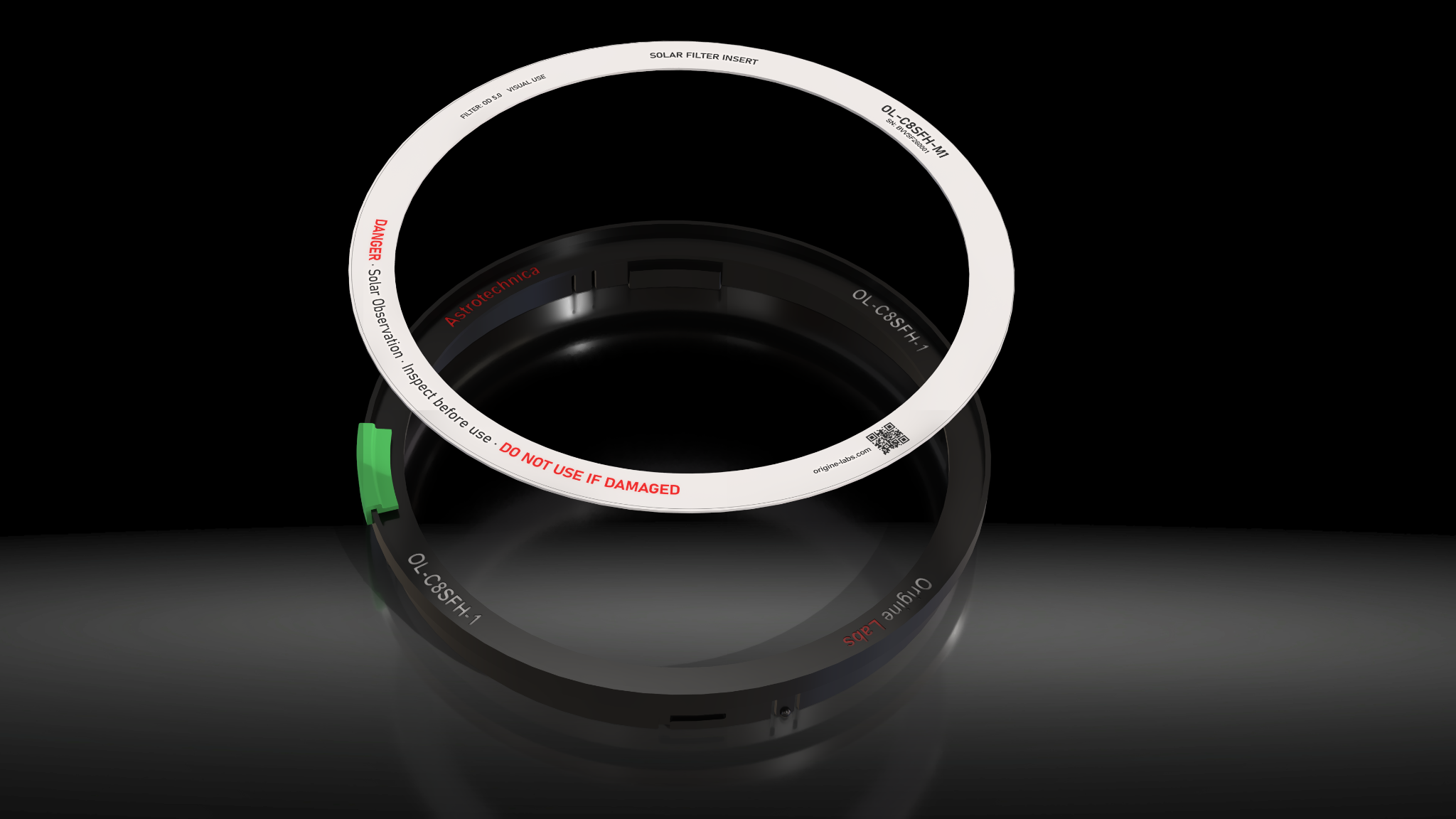

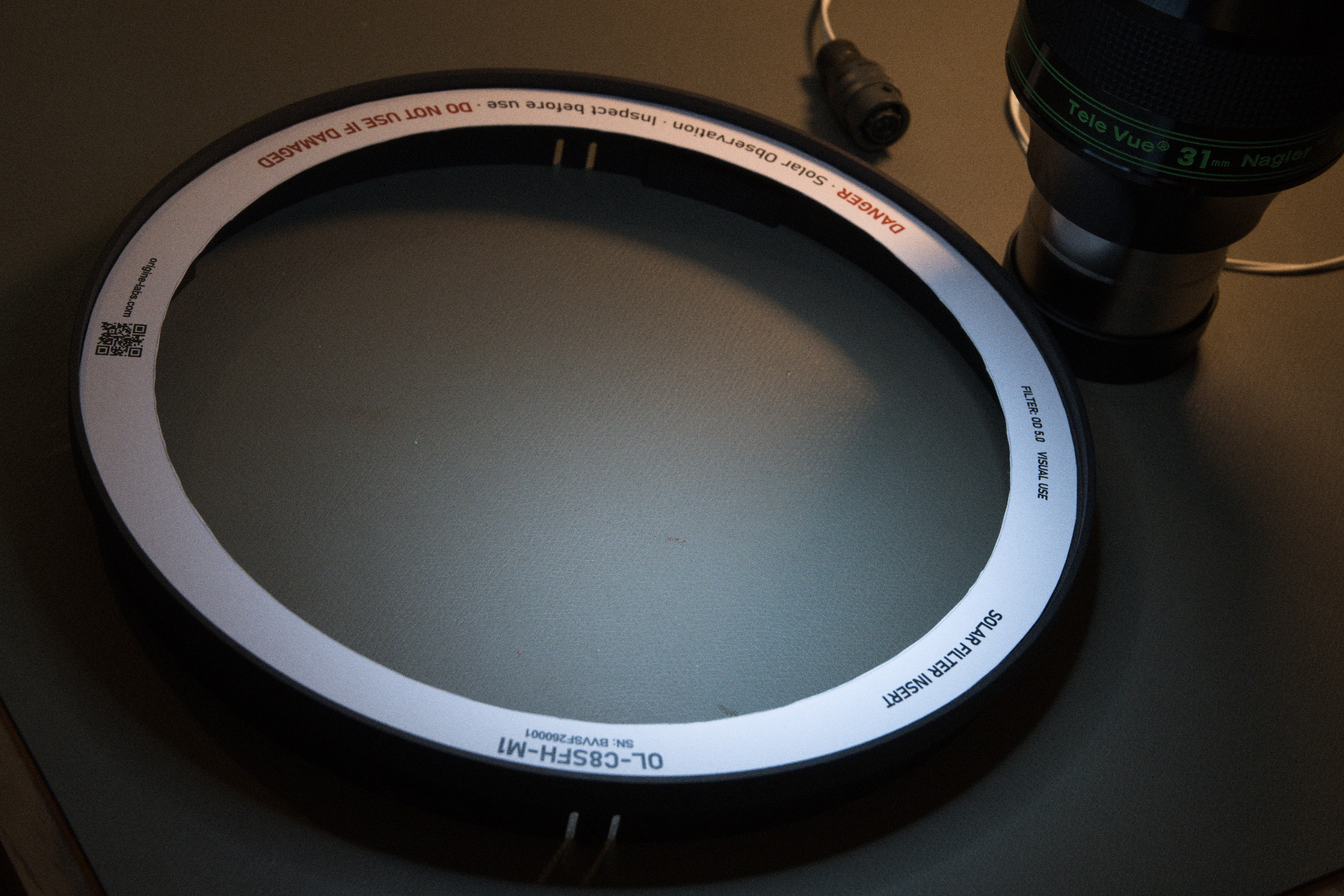

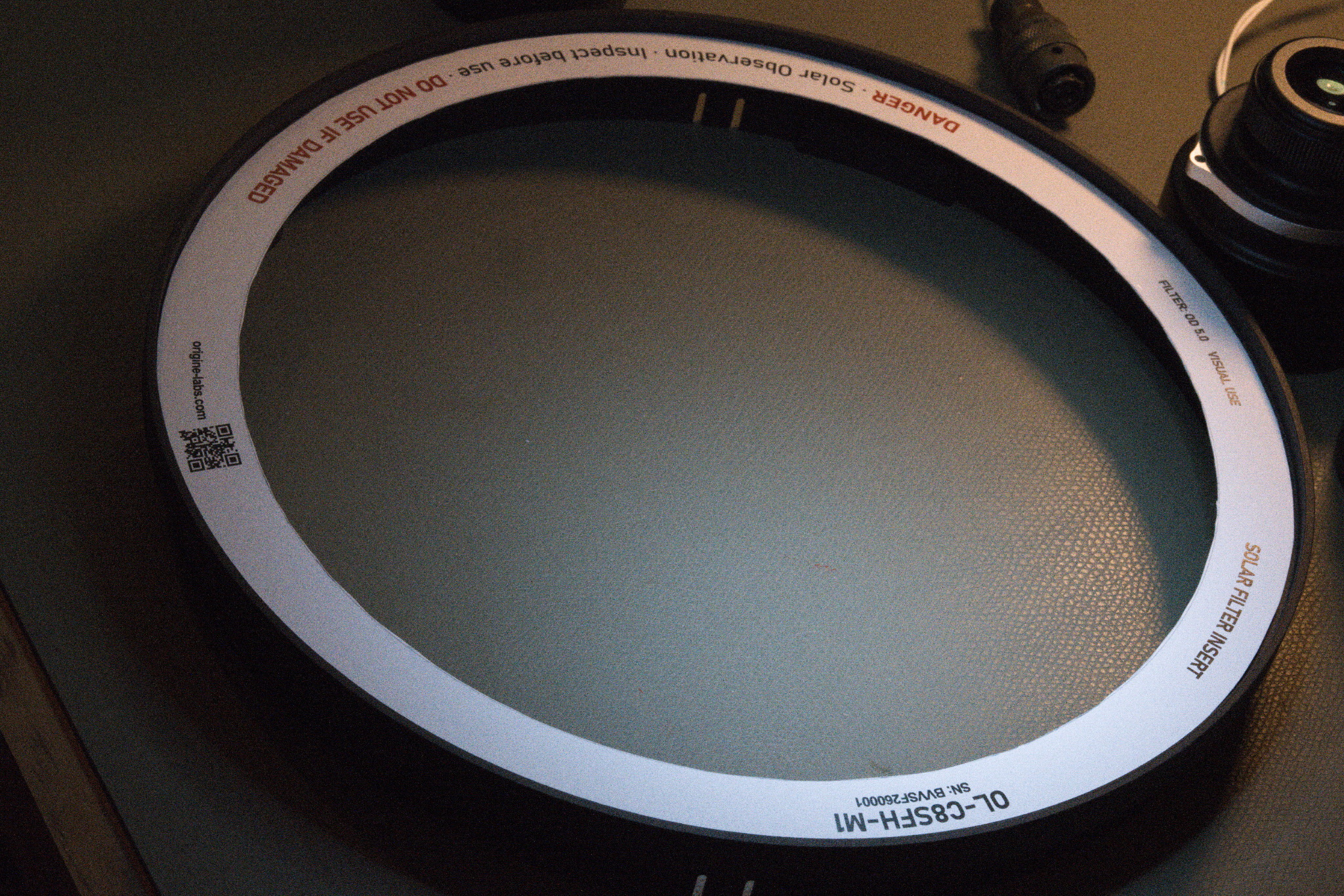

A removable film-carrier insert intended for full-aperture solar filtration. The design must protect the film against edge damage, creases, pinholes and handling loads while ensuring light-tight coverage and positive mechanical retention. The film type, assembly process, inspection criteria and packaging remain subject to final validation.
A patterned diffraction mask placed in front of the telescope aperture. The three families of slits generate diffraction spikes around a bright stellar target; best focus is indicated when the central spike is symmetrically positioned between the outer spikes. Mask stiffness, slit geometry and repeatability must be verified on the actual C8.
A three-sector extension of the Bahtinov concept, generating multiple diffraction-spike groups that may provide focus and collimation information. Its additional value over a conventional Bahtinov mask must be demonstrated, including pattern readability, mask orientation and comparison with standard collimation procedures.
An experimental multi-aperture focusing approach intended to generate an observable focus indication on an extended solar target. Whether it improves practical solar focusing over ordinary camera methods is unproven. This mask is not a solar filter; a separate, properly retained front-aperture solar filter must remain effective throughout operation.
A decentered circular opening selected to avoid the C8 secondary obstruction, providing an unobstructed but much smaller effective pupil. For a nominal 203 mm aperture and 64 mm central obstruction, the ideal geometric maximum is approximately (203 − 64) / 2 = 69.5 mm, before real-world clearances. Diffraction, light throughput and resolution trade-offs require practical testing.
Concentric aperture stops reduce the entrance pupil while retaining the telescope’s central obstruction. Smaller diameters change the effective focal ratio, diffraction limit, collected light and relative obstruction. The previously explored 100 mm, 150 mm and full-aperture sizes are provisional, not released specifications; any observing advantage must be tested.
Solar observation safety: Never point a telescope at the Sun without an appropriate, correctly installed and inspected solar filter. The M1 assembly is not approved for solar use solely because compatible film is selected. All attachment, film-retention, inspection and handling procedures must be validated before commercial release. M4, M5 and M6 are not solar filters.

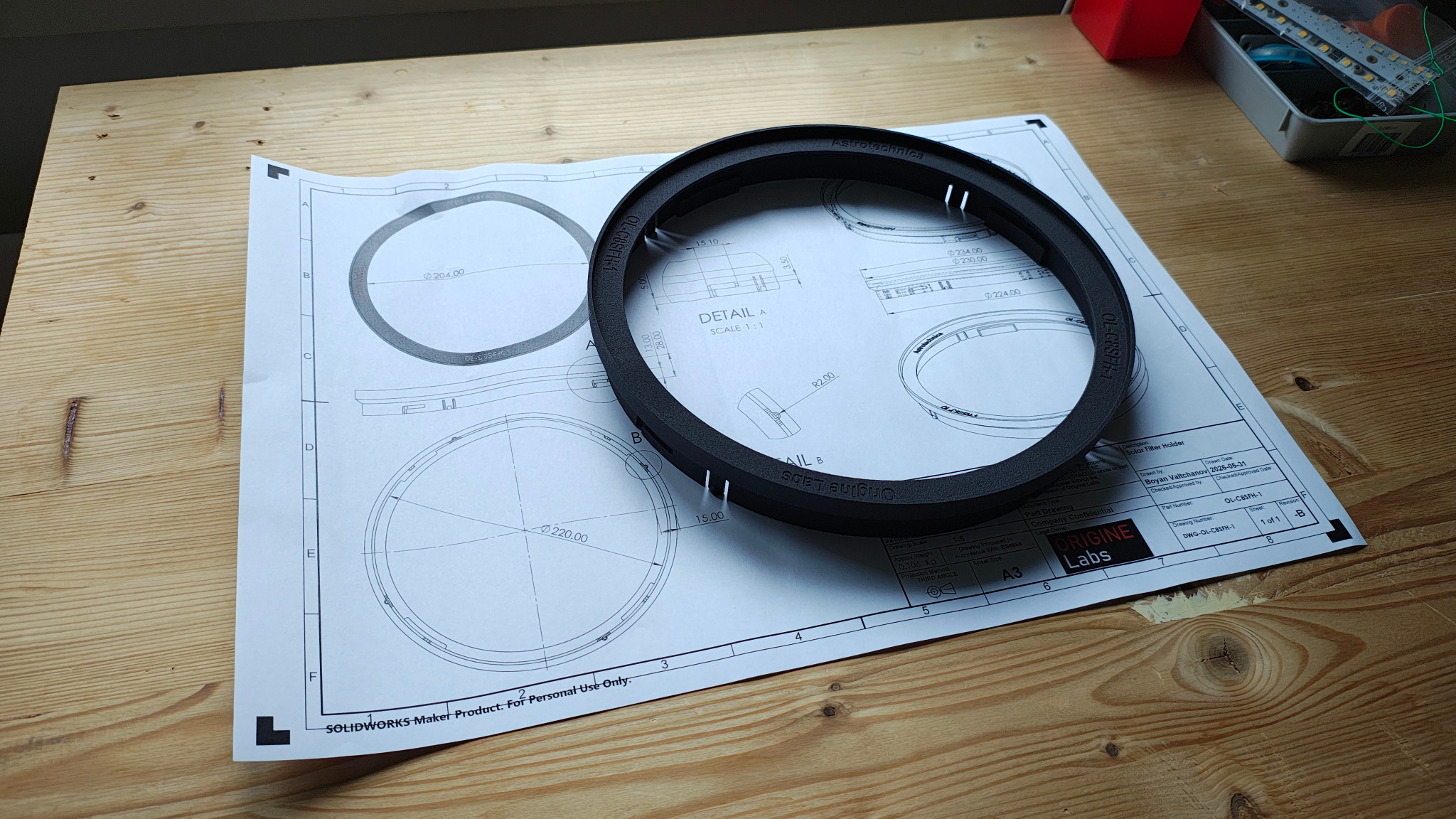

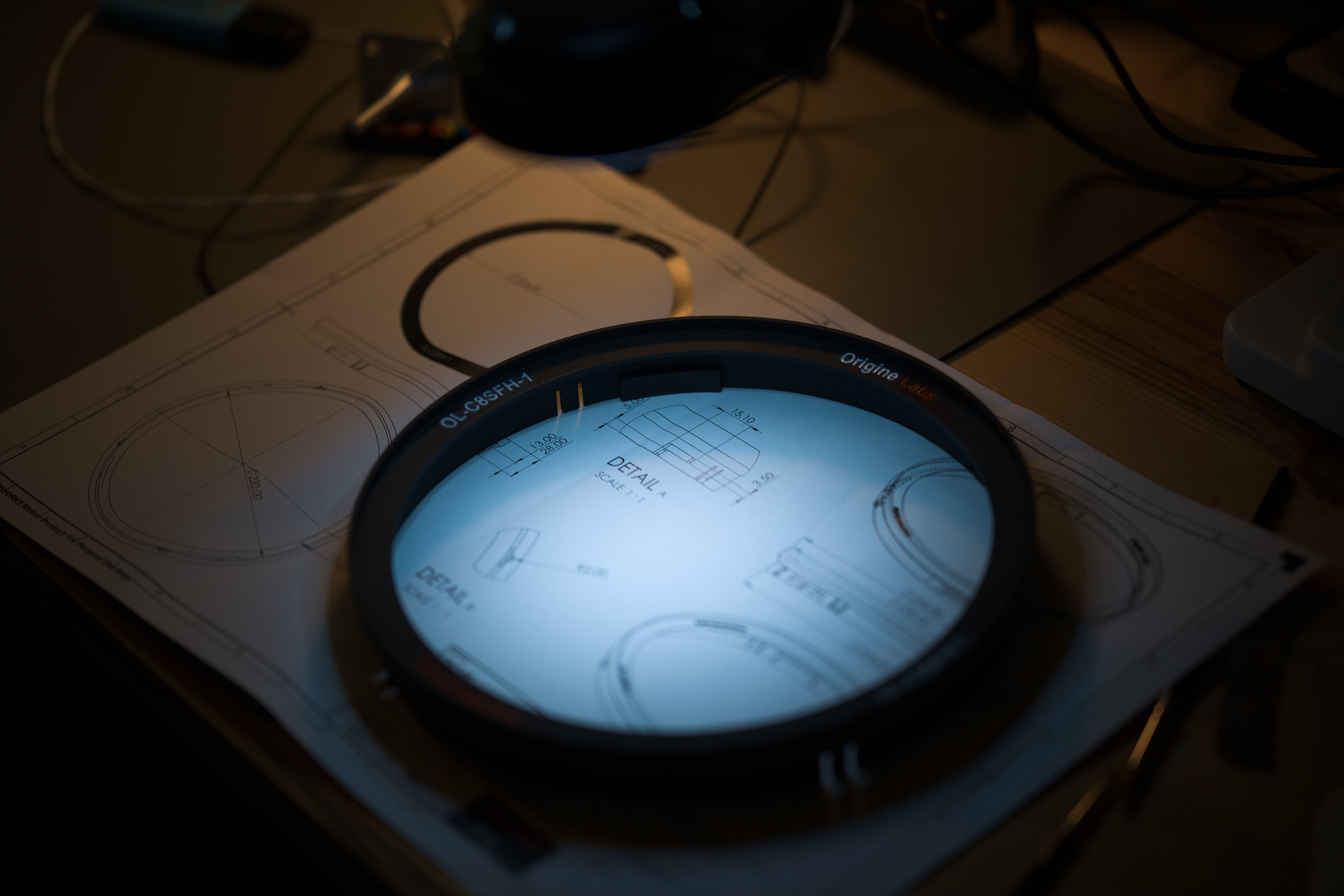

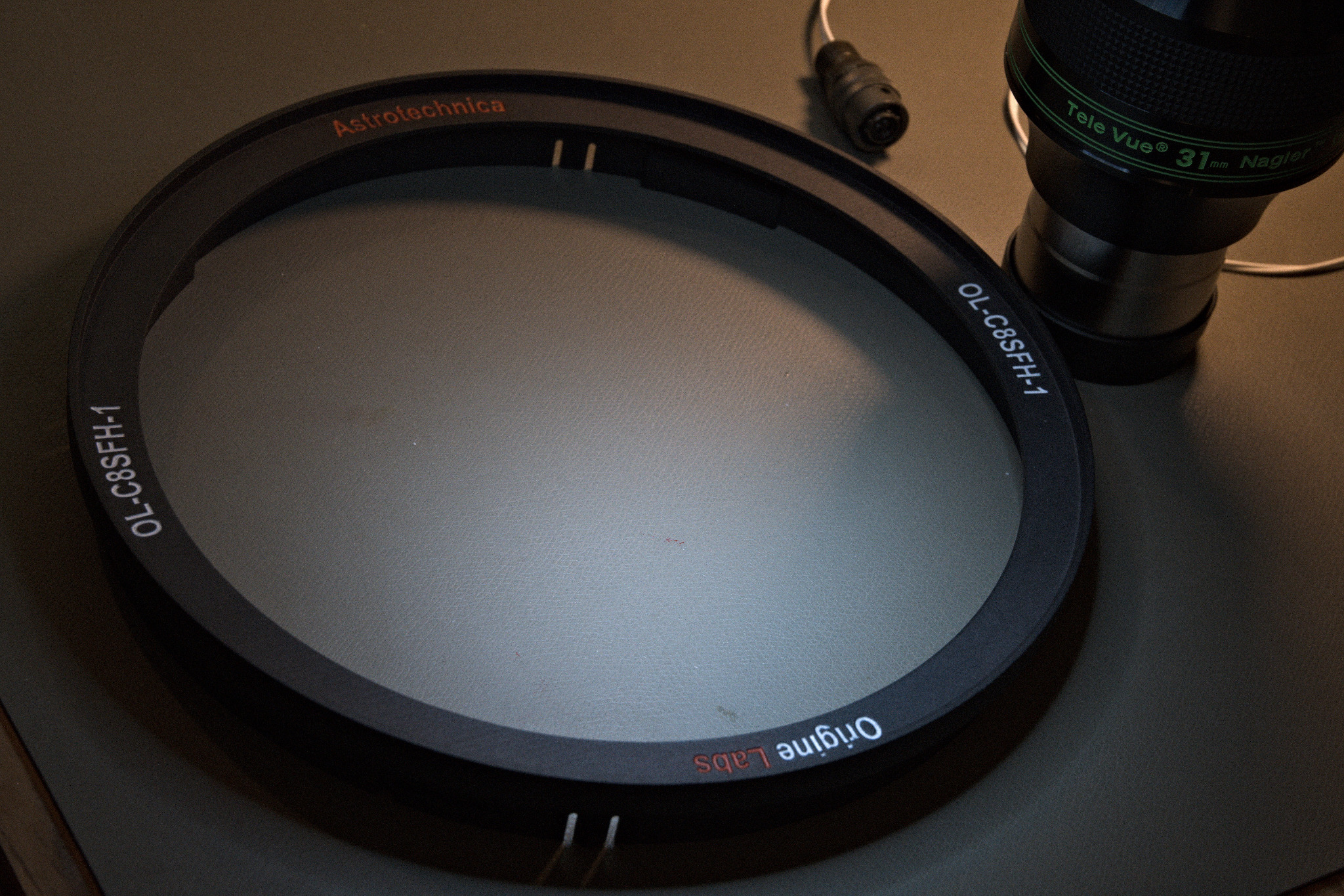

Physical prototypes, design documentation and assembly studies illustrating the transition from CAD geometry to manufactured hardware. The concept illustration is identified separately.
The revision-B engineering drawing is available as a preliminary reference only. It is not a released product datasheet and must not be used as a final manufacturing or inspection authority.
